Seal(S), Camshaft: Removal

WARNING: This page is about a different variant/trim than selected.
GC0146436Courtesy of CHRYSLER GROUP, LLC
  1. Remove the engine cover (1).
    GC0146726Courtesy of CHRYSLER GROUP, LLC
  2. Remove the CAC hose (2) from the resonator (3) and position aside.
    GC0169759Courtesy of CHRYSLER GROUP, LLC
  3. Remove the crankcase pressure sensor. Refer to SENSOR, CRANKCASE PRESSURE, REMOVAL .
  4. Disconnect the CCV hose (4) from oil breather/camshaft seal housing.

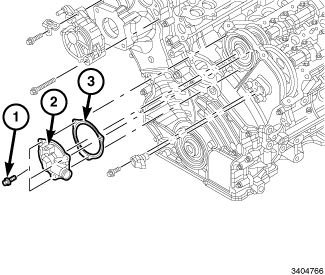

    GC0146774Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolts (1) and the oil breather/camshaft seal housing (2).
  6. Remove and discard gasket (3).

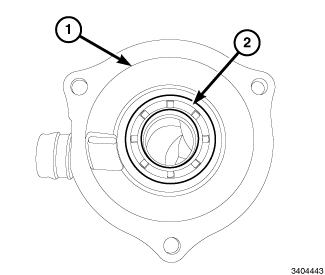

    GC0146771Courtesy of CHRYSLER GROUP, LLC
  7. Using a suitable tool, remove the camshaft oil seal (2).
