Rocker Arm, Valve: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Rocker arms and lifters must be installed in the same location as when removed.

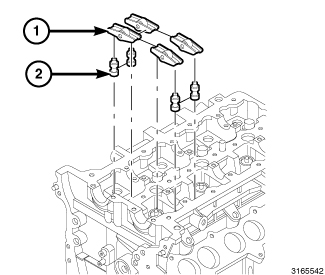

- Install the rocker arm (1) and lifter (2) assembly in the same location as noted during removal.
- Install the camshaft. Refer to CAMSHAFT, ENGINE, INSTALLATION .
