Body, Air Cleaner: Installation: Notes

WARNING: This page is about a different variant/trim than selected.

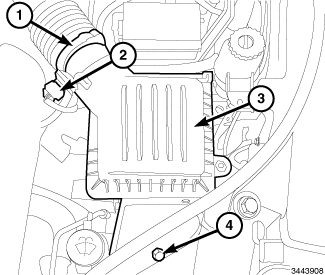

GC0146778Courtesy of CHRYSLER GROUP, LLC
  1. Position the air cleaner body (3) and push down to lock in place.
  2. Position the air inlet duct and install the fastener (4).
  3. Install the air outlet tube (1) onto Mass Air Flow (MAF) sensor and securely tighten screw clamp.
  4. Connect the MAF sensor harness connectors (2).
  5. Attach weather strip seal at air inlet snorkel.
  6. Connect the negative battery cable.
