Intake Air Tube

WARNING: This page is about a different variant/trim than selected.
GC0145586Courtesy of CHRYSLER GROUP, LLC
  1. Install the intake air tube to turbocharger and securely tighten clamp.
  2. Install the cowl extension silencer (1) and the side extensions (2, 5). Refer to SILENCER, COWL EXTENSION, INSTALLATION .

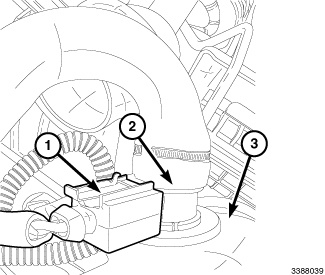

    GC0146758Courtesy of CHRYSLER GROUP, LLC
  3. Install the intake air tube to air cleaner body and securely tighten clamp.
  4. Connect the CCV hose heater wire harness connector (1).
    GC0146779Courtesy of CHRYSLER GROUP, LLC
  5. Install the CCV hose (1) to upper timing cover.
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  6. Install the engine cover (1).
  7. Connect the negative battery cable.
