Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.
GC0146722Courtesy of CHRYSLER GROUP, LLC
  1. If necessary, clean out the air cleaner body.
  2. Install the air cleaner element (1) into housing.

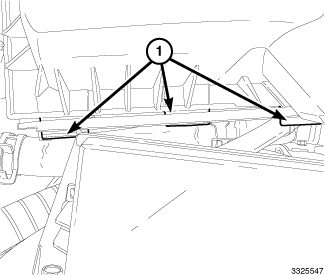

    GC0146723Courtesy of CHRYSLER GROUP, LLC
  3. Position housing cover locating tabs (1) into rear housing and seat cover onto housing.
    GC0146721Courtesy of CHRYSLER GROUP, LLC
  4. Lock the spring clips (1) to housing cover (2).
