Seal, Crankshaft Oil, Front: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:

The front crankshaft seal must be installed dry. Do not apply lubricant to sealing lip or to outer edge.

GC0144946Courtesy of CHRYSLER GROUP, LLC
  1. Install the threaded rod (1) from the (special tool #10387, Installer, Vibration Damper) into the crankshaft (2) till seated.

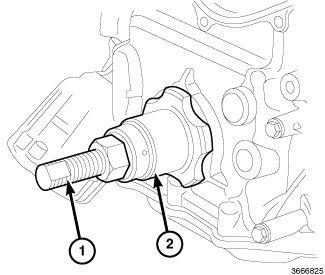

    GC0144950Courtesy of CHRYSLER GROUP, LLC
  2. Using Seal Installer (special tool #9072, Installer, Seal) and (special tool #10387, Installer, Vibration Damper) (2), install the crankshaft front oil seal.
  3. Install the vibration damper. Refer to DAMPER, VIBRATION, INSTALLATION .
