Rocker Arm, Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

The longer pushrods are for the exhaust side, and the shorter pushrods are for intake side.

Install the pushrods in the same order as removed.

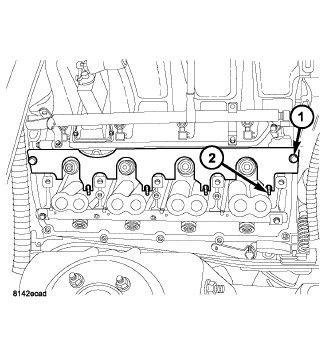

Install the Push Rod Retainer (special tool #9070, Retainer, Push Rod) (1).

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

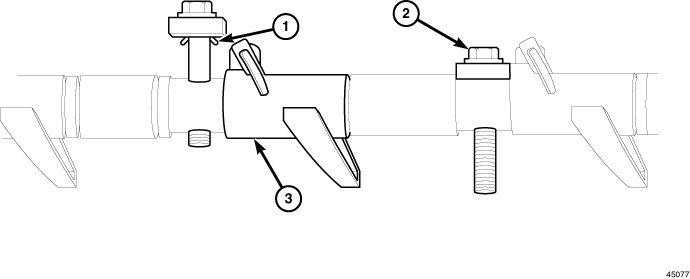

Ensure the retainers (1) and rocker arms (3) are not overlapped when torquing bolts.

CAUTION:
Verify the push rods are installed into the rocker arms (3) and lifters correctly while installing the rocker shaft assembly. Recheck after the rocker shaft assembly has been torqued to specification.
Install the rocker shaft assemblies in the same order as removed.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
The rocker shaft assemblies are not interchangeable between intake and exhaust. The intake rocker arms are marked with the letter "I".
Verify the rocker arms are installed in the correct location.
NOTE:
Repeat torque sequence several times to ensure rocker shaft assembly is firmly seated.

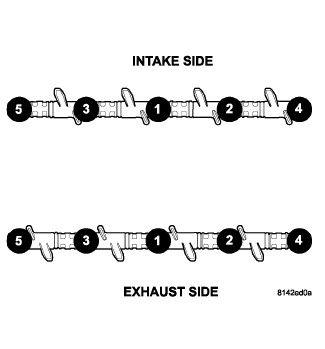

Using the sequence shown, tighten the rocker shaft bolts as follows:
- Snug to 10 N.m (7 ft. lbs.)
- Torque to 23 N.m (17 ft. lbs.)
- Individually loosen by 1/2 turn and re-torque to 23 N.m (17 ft. lbs.)
- Finally, Rotate 30 degrees
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not rotate or crank the engine during or immediately after rocker arm installation. Allow the hydraulic roller lifters adequate time to bleed down (about 5 minutes).
Remove the Push Rod Retainer (special tool #9070, Retainer, Push Rod) (1).

Courtesy of CHRYSLER GROUP, LLC
Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD .
