Valve, Exhaust Gas RECIRCULATION (EGR) Airflow Control: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Clean all gasket sealing surfaces.

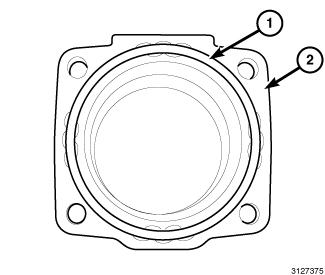

2. Install a NEW  O-ring seal onto the air inlet housing (2).

   Courtesy of CHRYSLER GROUP, LLC

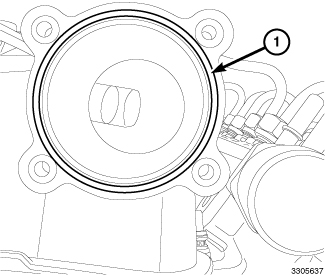

3. Install a NEW  O-ring seal (1) onto the intake manifold.

   Courtesy of CHRYSLER GROUP, LLC

4. Install the EGR airflow control valve (2). Tighten the four bolts (1) to (9 N.m 80 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

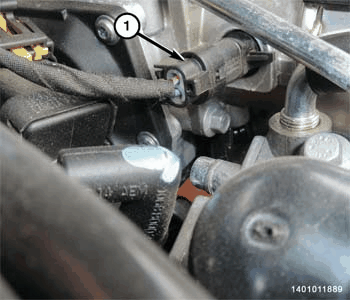

5. Connect the inlet temperature sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

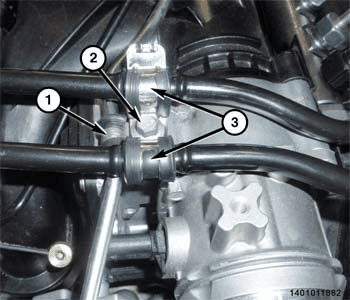

6. Install the bolt (2) securing the fuel lines (3) and fuel tube (1) to the EGR air flow control valve and tighten to 11 N.m (8 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

7. Connect the EGR airflow control valve harness connector.
8. Connect the air tube (1) to the EGR air flow control valve.

   Courtesy of CHRYSLER GROUP, LLC

9. Install the engine cover (1).
10. Connect the negative battery cable.
