Vacuum Actuator, EGR Bypass: Removal

GC0146436Courtesy of CHRYSLER GROUP, LLC
  1. Remove the engine cover (1).

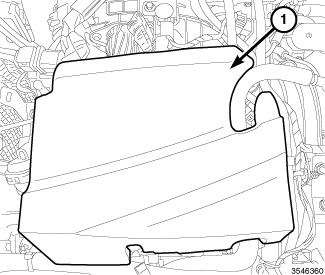

    GC0152125Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fuel injector silencer (1).
    GC0146748Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the EGR cooler vacuum bypass hose (1).

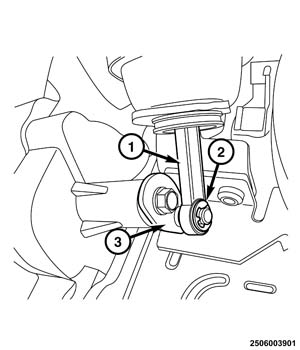

    GC0154673Courtesy of CHRYSLER GROUP, LLC
  4. Remove the E-clip (2) and disconnect the vacuum actuator rod (1) from the bypass valve (3).

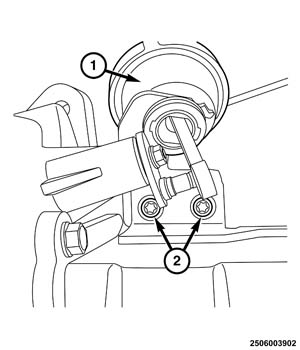

    GC0154687Courtesy of CHRYSLER GROUP, LLC
  5. Remove the screws (2) and the vacuum actuator (1) from EGR cooler.
