Panel, Quarter Trim: Removal

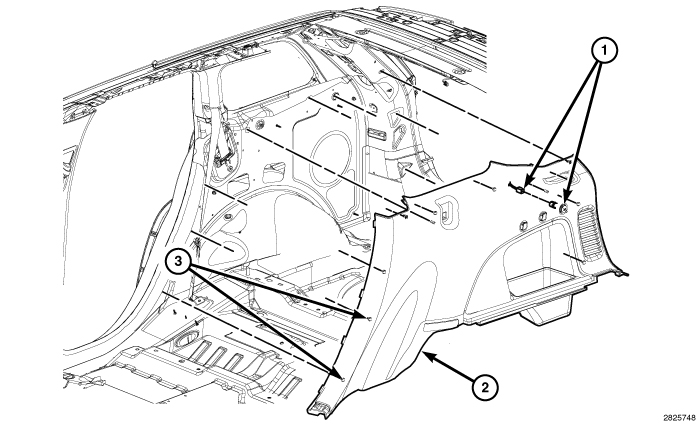

GC0146889Courtesy of CHRYSLER GROUP, LLC
  1. Remove the load floor. Refer to LOAD FLOOR, FOOTWELL, REMOVAL .
  2. Remove the rear door scuff plate. Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .
  3. Loosen the door seal from the door opening.
  4. Using a trim stick or equivalent, release the retaining fasteners (3) that secure the quarter trim panel to the quarter panel.
  5. Pull the quarter trim panel away from the quarter panel and disconnect the power outlet wire harness connector (1), if equipped.
  6. Remove the quarter trim panel (2).
