Panel, B-Pillar Trim, Upper: Removal

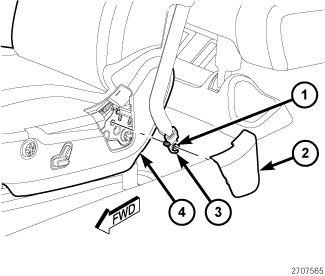

Courtesy of CHRYSLER GROUP, LLC

Adjust the front seat to its most forward position for easiest access to the front seat belt lower anchor cover (2) and the B-pillar trim.
Grasp the upper edge of the lower anchor cover and pull it carefully upward and outward to unsnap it from the front seat cushion outboard side shield (4).
Remove the screw (1) that secures the seat belt lower anchor (3) to the outboard side of the front seat cushion frame.

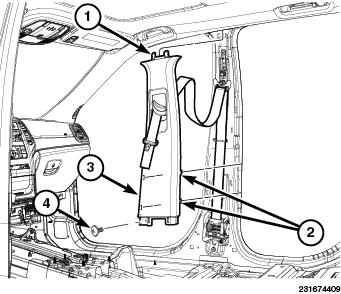

Courtesy of CHRYSLER GROUP, LLC
Remove the lower B-pillar trim. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
Remove the lower screw (4).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips (2) that secure the upper trim (3) to the pillar and remove the trim panel.
Remove the seat belt from the trim.
