Mirror, Outside Rearview, Glass: Removal
WARNING:
Always wear eye and hand protection when servicing the mirror glass. Failure to observe these warnings may result in personal injury from broken glass.

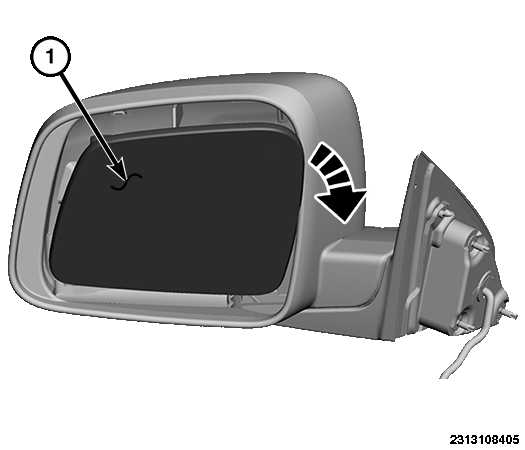

- Position the mirror glass (1) so that it is facing in toward the vehicle as far as possible.
- Disconnect and isolate the negative battery cable.
- Place thumbs behind mirror glass (1) and push out from the mirror assembly. This will release the mirror glass case's snap attachment feature.

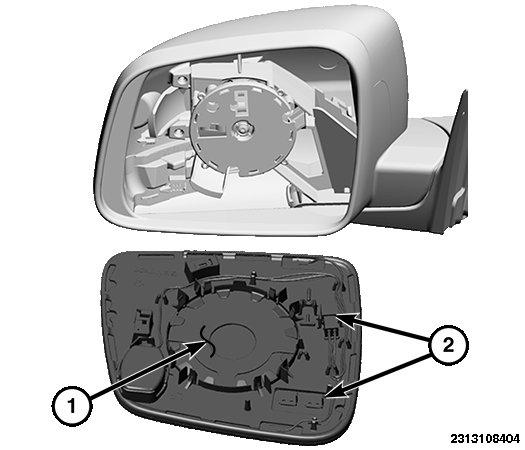

- Release the clips and separate the mirror glass from the motor. If equipped, disconnect the wire harness electrical connectors (2).
