Plate, Skid, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - STANDARD MODELS

1. Raise and support the vehicle, Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the front suspension skid plate, Refer to PLATE, SKID, TRANSFER CASE, REMOVAL .

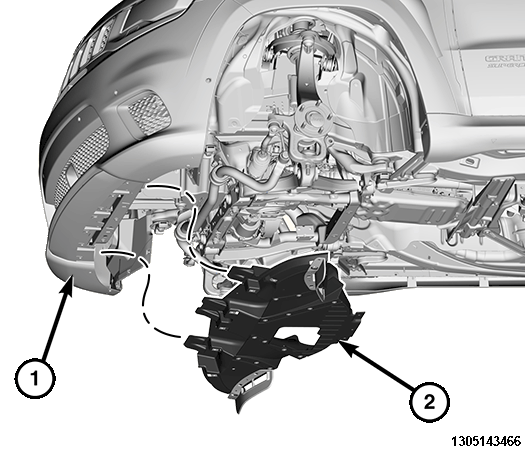

3. Remove the front (1) and rear (3) bolts.
4. Remove the front skid plate (2).

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - TRACKHAWK MODELS

1. Raise and support the vehicle, Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the front suspension skid plate, Refer to PLATE, SKID, TRANSFER CASE, REMOVAL .

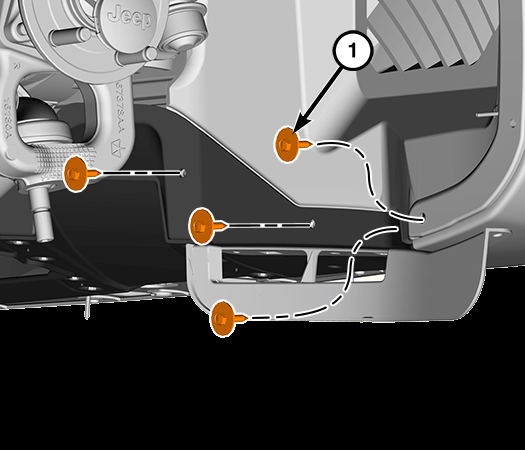

3. Remove the outer spat rivet (1).

   Courtesy of CHRYSLER GROUP, LLC

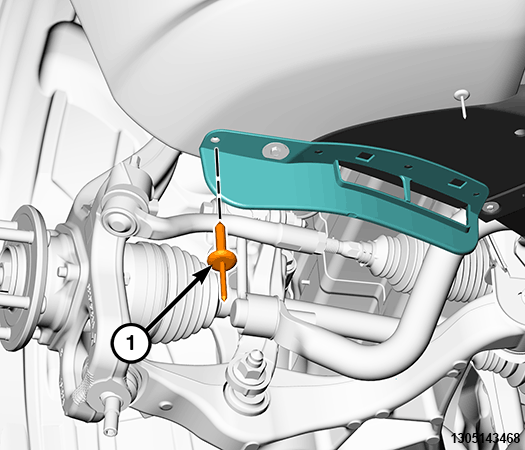

4. Remove the four fasteners (1) from each wheel well.

   Courtesy of CHRYSLER GROUP, LLC

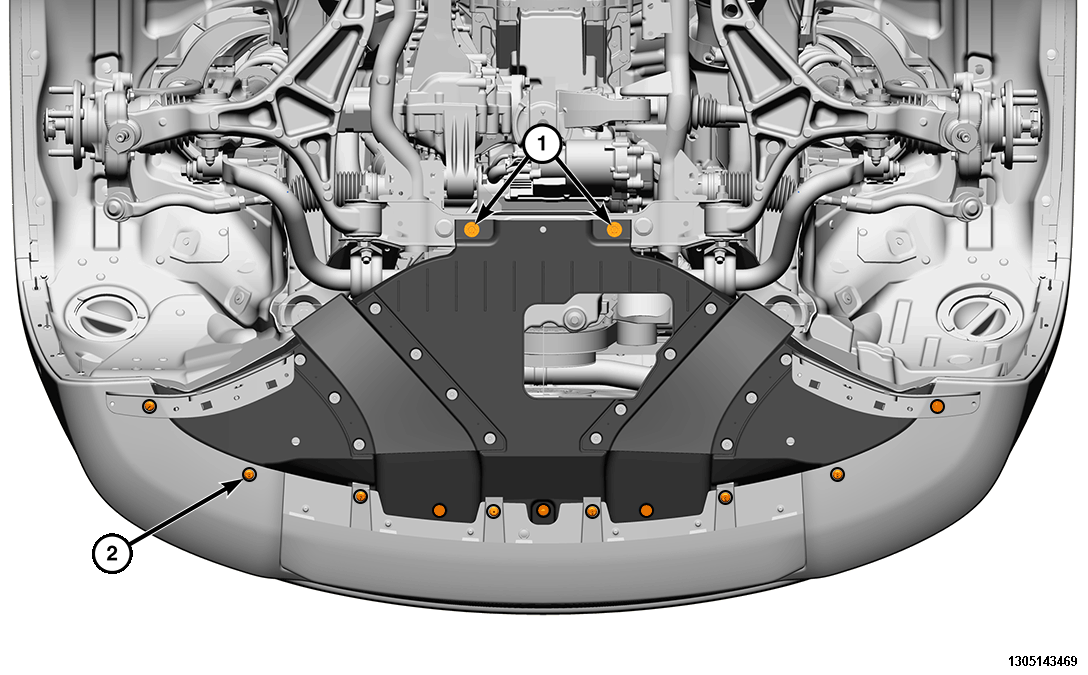

5. Remove the two rear fasteners (1).
6. Remove the 11 front fasteners (2).

   Courtesy of CHRYSLER GROUP, LLC

7. Remove the front skid plate (2).
