Except SRT

  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle.
    GC0172136Courtesy of CHRYSLER GROUP, LLC
  3. Partially pull back the appropriate wheel well splash shield to gain access to the fog lamp assembly. Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .
    GC0172138Courtesy of CHRYSLER GROUP, LLC
  4. Separate the wiring harness electrical connector (2) from the fog lamp assembly connector (1).

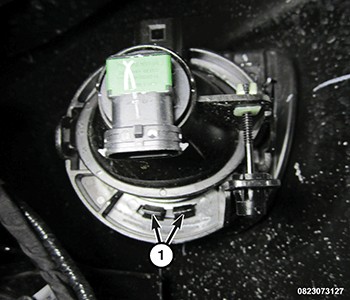

    GC0172127Courtesy of CHRYSLER GROUP, LLC
  5. Depress the two tabs (1) located on the bottom of the fog lamp and remove the lamp from the fascia.
