Lamp, Center High Mounted Stop: Installation

Courtesy of CHRYSLER GROUP, LLC

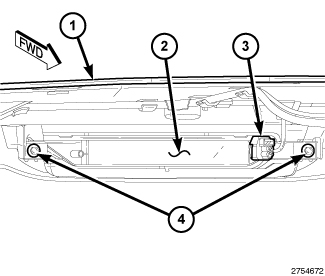

1. Position the Center High Mounted Stop Lamp (CHMSL) (2) through the opening on the liftgate side of the spoiler (1).
2. Install and tighten the two screws (4) that secure the CHMSL to the liftgate spoiler. Tighten the screws securely.
3. Reconnect the wire harness connector (3) to the connector receptacle on the back of the CHMSL housing.
4. Reinstall the spoiler and CHMSL (2) onto the liftgate flip-up glass as a unit. Refer to SPOILER, INSTALLATION .
5. Reconnect the battery negative cable.
