Lever, Transfer Case: Removal

WARNING: This page is about a different variant/trim than selected.
GC0131299Courtesy of CHRYSLER GROUP, LLC
  1. Shift transfer case into 4L.
  2. Remove the floor console as necessary to access the shifter mechanism. Refer to CONSOLE, CENTER, REMOVAL .
  3. Disengage the transfer case shift cable from the shift lever pin and body.

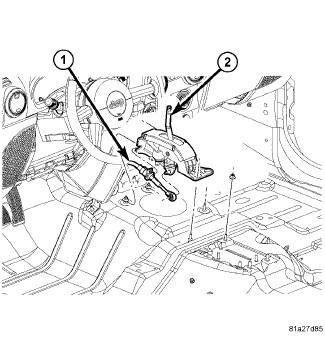

    GC0131302Courtesy of CHRYSLER GROUP, LLC
  4. Remove the nuts attaching lever assembly (1) to floorpan and remove assembly (2).
  5. Remove the shifter mechanism from the vehicle.
