Section 1 (NV241 Or Transfer Case (Service Information)): Handle: Removal
WARNING: This page is about a different variant/trim than selected.
multimedia:A supplement to the article is available.
NOTE:

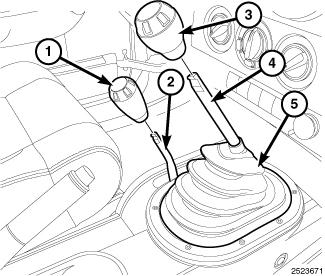

Manual transmission shifter assembly shown. Automatic transmission shifter assembly typical.
NOTE:
Most handles can be remove by hand. The motion should mimic that of a slide hammer. Constant force doesn't aid in the removal of the handle.
- Slide the shift lever (2) back towards the seat and pull in an upward motion with a "quick" snap to remove the handle (1).

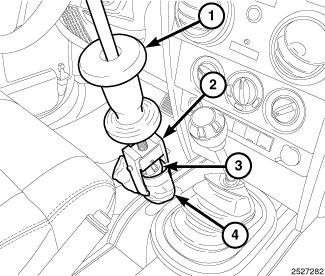

- If removal of the handle by hand is not possible wrap a shop towel or equivalent (4) around the base of the handle (3) and using puller (special tool #C-4333A-1, Puller, Pulley) or equivalent (2) and (special tool #C-637, Slide Hammer, Universal) or equivalent (1), remove the handle (3) from the shift lever.
