Switch, Lumbar Control: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Disable the airbag system before attempting any front seat diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.
- Position the seat being serviced all the way forward.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.NOTE:
It is not necessary to remove the seat belt anchor from the seat when servicing the power lumbar control switch.

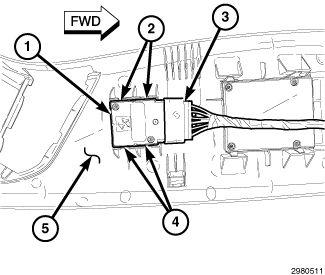

- Remove the outboard seat cushion side trim panel (5) from the seat. Refer to SIDE SHIELDS, SEAT, POWER, REMOVAL .
- Using Trim Stick (special tool #C-4755, Trim Stick) or equivalent, carefully disengage the four tabs (2 and 4) that secure the lumbar control switch (1) to the seat cushion side trim panel.
- Disconnect the electric connector (3) from the lumbar control switch and remove the switch.
