Outlet, Power, 115 V: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Insert the 115v outlet into the panel.

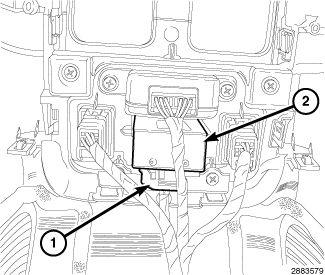

- Connect the wire harness connector (1) to the 115v power outlet (2).
- Install the duct to the trim panel.
- Install the rear console trim panel.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
