Switch, Heated Seat: Description

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

Front Heated Seats:

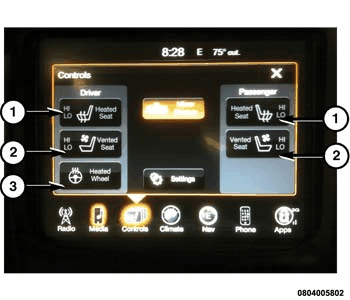

The switches (1) for the optional front heated seat system are located in the Radio, at the center of the instrument panel. The heated seat system allows the driver and front seat passenger to select from two different levels of electrical seat heating (HI and LO). When the heated seat switches are pressed on, each heated seat switch illuminates either HI or LO, and an International Standards Organization (ISO) symbol appears at the top of the Radio.

Rear Heated Seats:

The heated seat switches for the 2nd row seats are located in the rear of the center console. These switches allow the 2nd row seat passengers to select from two different levels of electrical seat heating (HI and LO). Amber Light Emitting Diodes (LEDs) in each switch indicate the level of heat in use: Two LEDs are illuminated for HI, one for LO, and none for off. Pressing the switch once will select HI heating. Pressing the switch a second time will select LO heating. Pressing the switch a third time will shut the heating elements OFF.
