Pad, Vented Seat: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

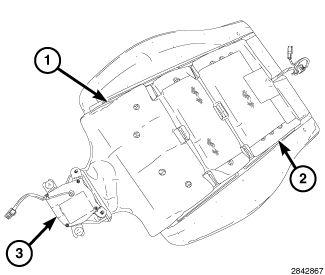

Seat cushion shown in illustration. Seat back cushion similar.
When equipped, each seat bottom and seat back cushion have there own vented seat pad (1) and brushless vented seat motor (3). The vented seat pad and the heated seat pad (2) are a one piece assembly. The vented and heated pad assemblies are located between each front seat cushion and cover and are attached to each cushion, by an adhesive.
