Motor, Vented Seat: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Each front seat has two vented seat motors (1). One motor is mounted to the seat back frame and the second motor is mounted to the seat bottom pan. Each motor is attached to a vented seat pad.

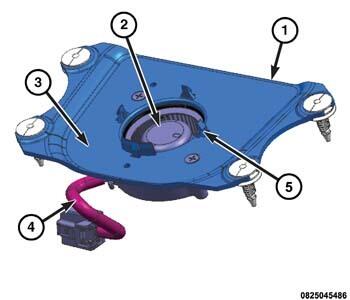

The vented seat motor consists of a 12V 3-wire brushless motor with a wire lead and connector (4), an integral fan blade (2), a plastic mounting bracket (3) and four plastic tabs (5) that secure the motor to the vented pad. The vented seat motors can be seen once the cushions and covers have been removed. The motor is serviced individually.
