Switch, Defogger: Description

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0158337Courtesy of CHRYSLER GROUP, LLC

The momentary push-button switch for the rear window defogger (EBL) system can be located in the A/C-heater control in the center of the instrument panel.

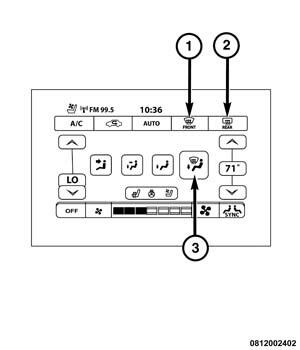

GC0158382Courtesy of CHRYSLER GROUP, LLC

There is an option for the switches to be located within the U-Connect touch screen. An amber indicator will illuminate to indicate when the EBL system is turned on for either switch.
