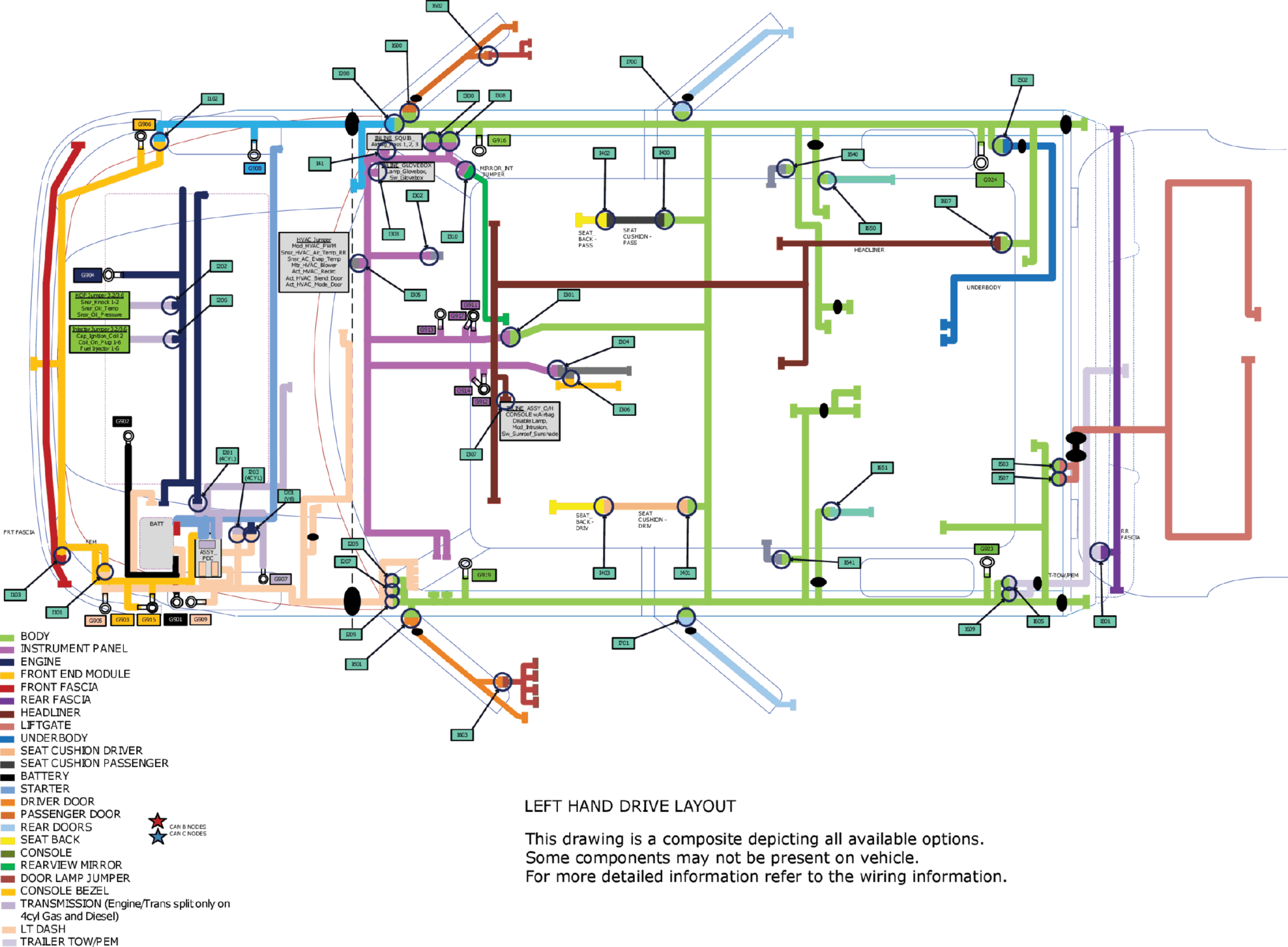

Inline Connectors And Ground Locations

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

Courtesy of CHRYSLER GROUP, LLC
