Pads, Brake, Front: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Before proceeding. Refer to CAUTION  and refer to WARNING .

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the wheel mounting bolts, then the tire and wheel assembly.

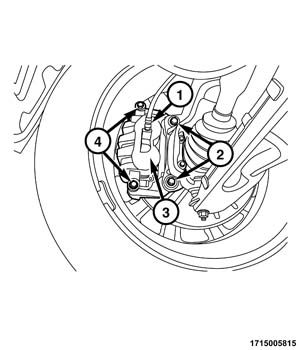

    GC0159827Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two brake caliper guide pin bolts (4).
  4. Remove the disc brake caliper from the disc brake adapter bracket and hang it out of the way using wire or a bungee cord. Use care not to overextend the brake hose when doing this.
  5. Remove the brake pads from the caliper adapter bracket.
