Switch, Brake Fluid Level: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

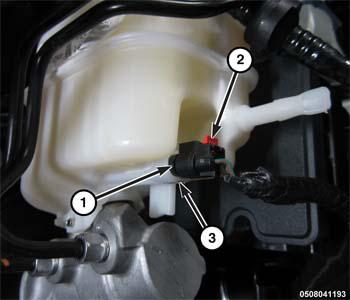

- Remove the brake fluid level switch electrical connector (2) from the brake fluid level switch.
- Push in the brake fluid level switch retainer and pull the brake fluid level switch from the reservoir.
