Pump, Electric Vacuum: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0147016Courtesy of CHRYSLER GROUP, LLC
  1. Position the vacuum pump assembly (1), ensuring that the two ground leads are in place while installing bracket mounting bolts (2). Tighten bolts to the proper torque. Refer to TORQUE  .
  2. Attach the harness connector to the bracket and connect the electrical connector (3).

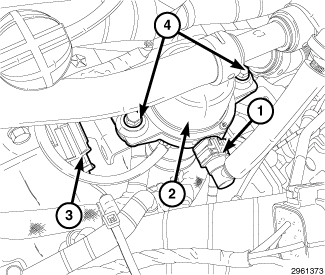

    GC0147015Courtesy of CHRYSLER GROUP, LLC
  3. Connect the quick-connect vacuum hose (1) to the vacuum pump (2) and seat the locking tab.
  4. Install the engine appearance cover.
