Switch, Washer Fluid Level: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

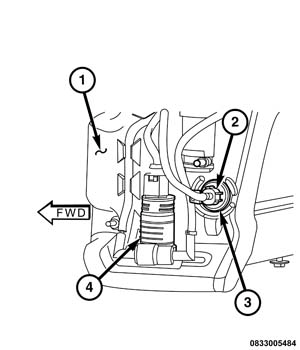

- Lubricate a new rubber grommet seal with clean washer fluid and install it into the washer fluid level sensor mounting hole in the washer reservoir (1). Always use a new rubber grommet seal on the reservoir.
- Insert the float of the washer fluid level sensor (3) through the rubber grommet seal and into the washer reservoir. The flat of the index tab on the washer fluid level switch mounting flange should be pointed upward.
- Using hand pressure, press firmly and evenly on the washer fluid level sensor mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the mounting hole of the washer reservoir.
- Connect the Front End Module (FEM) wire harness connector (2) for the washer fluid level sensor to the sensor connector receptacle.
- Connect the reservoir washer plumbing fitting to the barbed outlet nipple of the washer pump (4).
- Install the plastic push-in fasteners that secure the left front wheel house splash shield to the inner fender panel and the front fascia. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Fill the washer reservoir with the washer fluid siphoned from the reservoir during the removal procedure.
