Reservoir, Windshield Washer: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

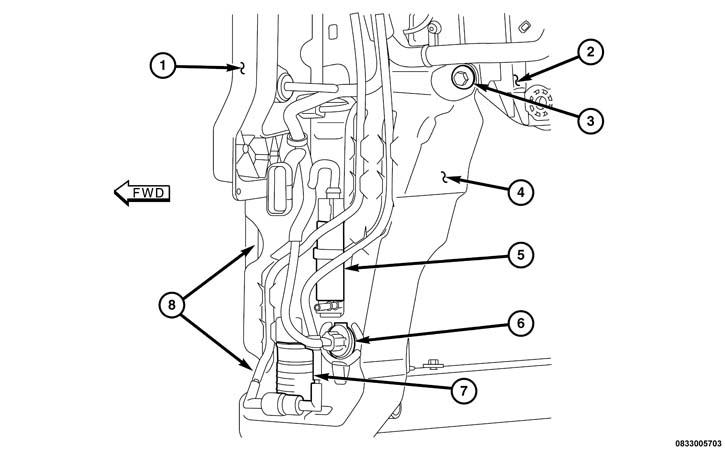

GC0159921Courtesy of CHRYSLER GROUP, LLC
  1. Position the washer reservoir (4) into the left front fender wheel house from underneath the vehicle.
  2. Raise the washer reservoir into position, rotating it as necessary for clearance.
  3. Engage the two mounting tabs at the front of the washer reservoir over the weld studs on the outboard side of the Front End Module (FEM) hydroform (1).
  4. Install and tighten the two nuts (8) that secure the washer reservoir to the weld studs on the FEM hydroform. Tighten the nuts to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
  5. Install and tighten the screw (3) that secures the mounting tab on the upper rear corner of the washer reservoir to the battery tray (2). Tighten the screw to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
    NOTE:

    Be certain to connect the front and rear washer hoses to the proper outlet nipples of the washer pump. Failure to properly connect the hoses will cause the front and rear washer systems to operate incorrectly.

  6. Connect the front and rear washer hoses to the barbed outlet nipples of the washer pump (7).
  7. If the vehicle is so equipped, connect the headlamp washer supply hose quick-connect fitting to the outlet nipple of the headlamp washer pump (5).
  8. Connect the FEM wire harness connectors to the washer fluid level switch (6), the washer pump/motor and, if equipped, the headlamp washer pump/motor.
  9. Install the plastic push-in fasteners that secure the left front wheelhouse splash shield to the inner fender panel and the front fascia. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
  10. Remove the support and lower the vehicle.

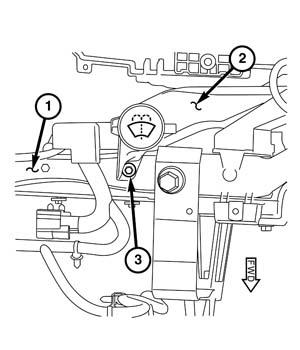

    GC0159659Courtesy of CHRYSLER GROUP, LLC
  11. Install and tighten the screw (3) that secures the washer reservoir filler neck (2) mounting tab to the upper radiator cross member (1). Tighten the screw to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
  12. Fill the washer reservoir with the washer fluid drained during removal.
  13. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
