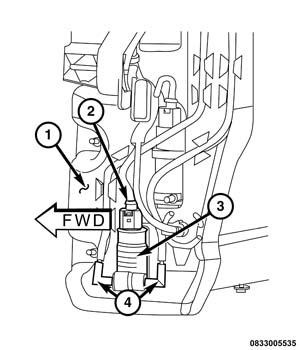

- Lubricate a new rubber grommet seal/filter screen with clean washer fluid and install it into the washer pump mounting hole in the washer reservoir (1). Always use a new rubber grommet seal/filter screen on the reservoir.
- Position the inlet nipple on the base of the pump housing of the washer pump/motor unit (3) to the rubber grommet seal/filter screen in the reservoir.
- Using hand pressure, press firmly and evenly downward on the top of washer pump/motor unit until the inlet nipple is fully seated in the rubber grommet seal/filter screen in the pump mounting hole of the reservoir.
- Align the snap post on the top of the motor housing with the snap post receptacle in the washer reservoir.
- Using hand pressure, press firmly and evenly on the top of motor housing until the post snaps into the receptacle.NOTE:
Be certain to connect the front and rear washer plumbing fitting to the proper outlet nipples of the washer pump. Failure to properly connect the fittings will cause the front and rear washer systems to operate incorrectly.
- Connect the front and rear washer plumbing fittings (4) to the barbed outlet nipples of the washer pump.
- Connect the Front End Module (FEM) wire harness connector (2) for the washer pump/motor unit to the connector receptacle on the top of the motor.
- Install the plastic push-in fasteners that secure the left front wheelhouse splash shield to the inner fender panel and the front fascia. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
- Lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Fill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
