Nozzle, Washer: Description: Headlamp

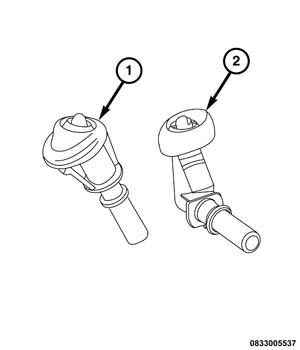

Vehicles equipped with the optional headlamp washer system have two static headlamp washer nozzles mounted in the front bumper fascia, one beneath each front lamp unit. Two unique versions of the nozzle are used and they are not interchangeable. The on-road version of the nozzle (1) used in vehicles that are not equipped with the optional off-road front bumper fascia can be identified by a more rounded bezel appearance and a straight quick-connect inlet nipple. The off-road version of the nozzle (2) used in vehicles that are equipped with the optional off-road front bumper fascia can be identified by a more elongated bezel appearance and a right angle quick-connect inlet nipple.
The fixed body of both molded plastic nozzles have a fixed integral mounting clip on the rearward side just below the bezel, and a movable integral mounting clip on the opposite side. Both also have an integral index tab that engages a notch in the front bumper fascia mounting hole. A large diameter high pressure washer fluid supply line from the dedicated headlamp washer pump/motor unit is connected to the inlet nipple on the nozzle body using a molded plastic quick-connect fitting.
The headlamp washer nozzle cannot be adjusted or repaired and, if ineffective or damaged, the nozzle must be replaced with a new unit.
