Nozzle, Washer: Description: Front

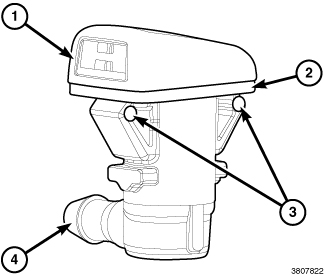

The fluidic front washer nozzles (1) are constructed of molded plastic and include an integral check valve. Each nozzle has two integral latches (3) that secure it in a dedicated hole in the hood panel near the base of the windshield. A resilient rubber gasket (2) seals the nozzle to the outer hood panel. The domed upper surface of the washer nozzle is visible on the outside of the hood panel and the nozzle orifices are oriented towards the windshield glass.
An integral diaphragm type check valve is contained within the body of each nozzle. The barbed washer plumbing fittings (4) for the nozzles extend below the hood panel and are accessible from the engine compartment when the hood is opened.
A front washer nozzle cannot be adjusted or repaired and, if ineffective or damaged, it must be replaced.
