Disconnecting Rear Washer Nozzle Quick-Connect Fitting
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

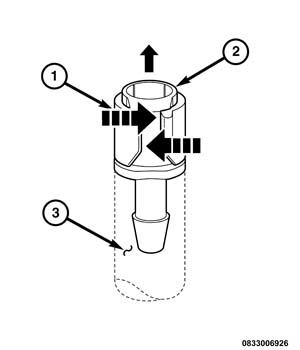

A molded plastic quick-connect fitting (2) joins the rear washer nozzle to the rear washer hose (3). To disconnect this fitting:
- Spread apart the two ends of the quick-connect fitting retention collar (1) far enough to release the quick-connect nipple fitting of the rear washer nozzle.
- With the quick-connect nipple fitting of the rear washer nozzle released, pull the nozzle and the rear washer hose away from each other to disconnect them.NOTE:
When connecting the quick-connect fitting, align the female half of the fitting to the male half of the fitting. Do not attempt to connect using an angled approach. Push the two halves together until an audible click is heard.
