Disconnecting Low Pressure Washer Plumbing Quick-Connect Fittings
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

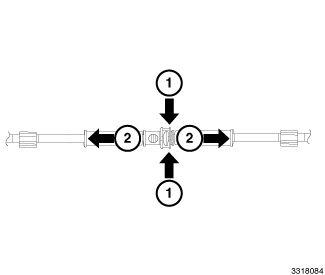

Molded plastic quick-connect fittings join sections of the low pressure front and rear washer plumbing. To disconnect this fitting:
- Squeeze the two solid sides (not the open sides) of the female half of the quick-connect fitting at the outer edge.
- While still squeezing the female half of the fitting, pull the two sections of the washer plumbing away from each other.
