Blade, Wiper: Removal: Front

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass may be damaged.

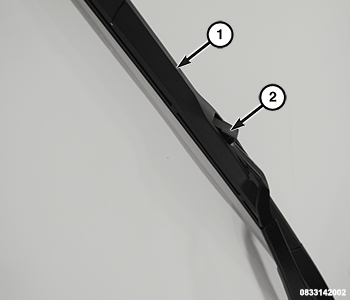

GC0176925Courtesy of CHRYSLER GROUP, LLC
  1. Raise the wiper arm fully.
  2. Pry up the release tab (2).
  3. Rotate the lower end of the blade away from the wiper arm, then slide the blade (1) inward far enough to unhook it from the wiper arm end and remove.
