Arm, Wiper: Removal: Rear

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

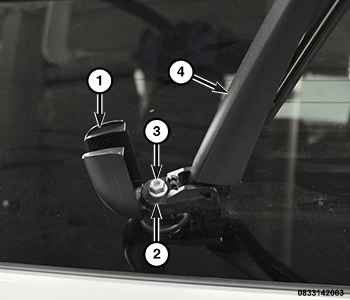

Unsnap and open the plastic pivot cover (1).
Remove the wiper arm nut (3).
Lift the wiper arm (4).
Use a slight rocking action, loosen the wiper arm (2) from the pivot shaft and remove.
CAUTION:
The use of a battery terminal puller when removing the rear wiper arm is NOT recommended as this may damage the rear wiper arm.
If the rocking action failed to free the wiper arm from the pivot shaft, use a suitable battery terminal puller to loosen the wiper arm.
