Sensor, Camshaft Position, 2.0L Diesel: Installation: Diesel
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

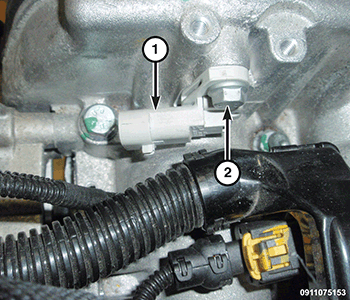

- Install the Camshaft Position Sensor (CMP) (1). Tighten the bolt (2) to the proper. Refer to TECHNICAL SPECIFICATIONS .

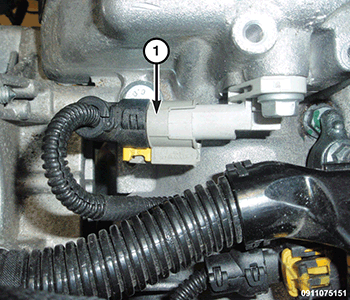

- Connect the CMP wire harness connector (1).
- Install the crankcase breather hose.
- Install the engine cover. Refer to .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
