Plug, Glow: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

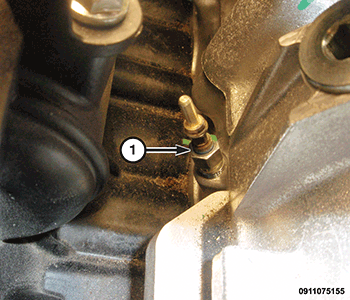

- Install the glow plug(s) (1). Tighten the glow plug(s) to the proper. Refer to TECHNICAL SPECIFICATIONS .

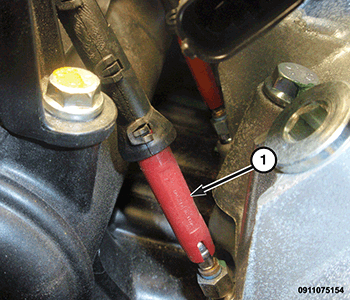

- Connect the glow plug wire harness connector (1).
- Install engine cover. Refer to .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
