Section 61 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Installation: Subwoofer
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

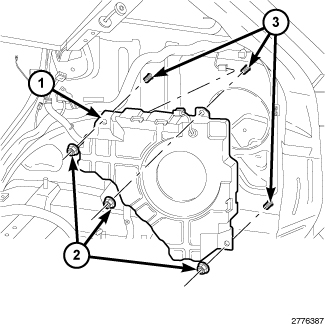

- Install the subwoofer (1).
- Install the subwoofer retainers (2).
- Connect the subwoofer electrical connector.NOTE:
Without subwoofer shown, with subwoofer similar.

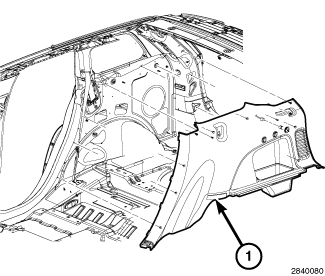

- Install the passenger side quarter trim panel Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
