Instrument Panel

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

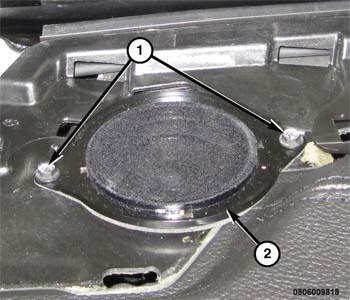

GC0159744Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector to the speaker (2).
  2. Install the two screws (1) that secure the speaker to the instrument panel and securely tighten.
  3. Align and install the speaker grille to the instrument panel.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
