Module, Radio Antenna: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the driver side upper quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

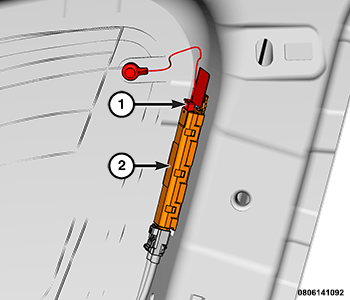

    GC0176899Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the antenna cable (1) from the radio antenna module (2).

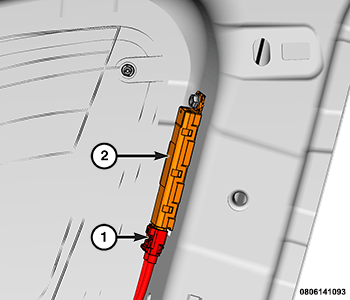

    GC0177023Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the two wire harness connector (1) from the radio antenna module (2).

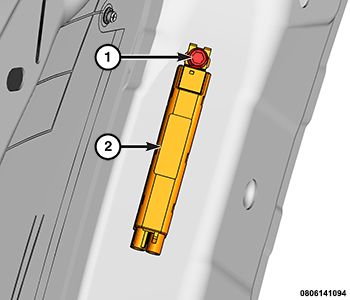

    GC0177025Courtesy of CHRYSLER GROUP, LLC
  5. Remove the screw (1) and then remove the radio antenna module (2) from the C-pillar.
