Module, Radio Antenna: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

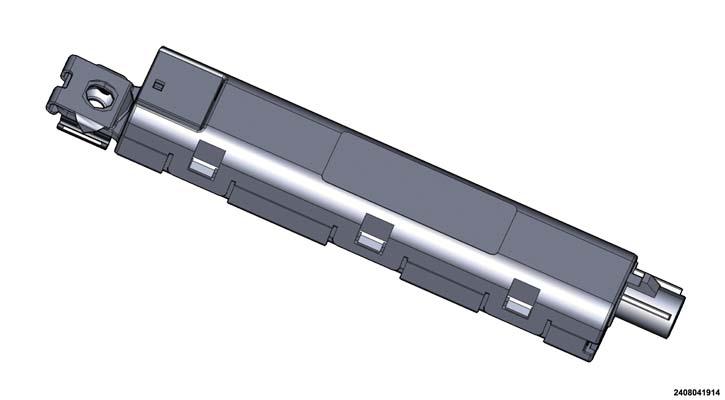

The antenna module is an electronic circuit component designed to capture and enhance RF (Radio Frequency) signals in both the AM and FM broadcast bands. The antenna module is mounted to the left C-pillar midway up the rear quarter glass. The module is grounded through the mounting bracket and fastener. The module has a one wire connector that connects to the integral radio antenna grid located on the rear window. There is also a coax cable connector coming from the radio. The radio supplies 9 volts to the module through the coax cable.
