Module, External Disc: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

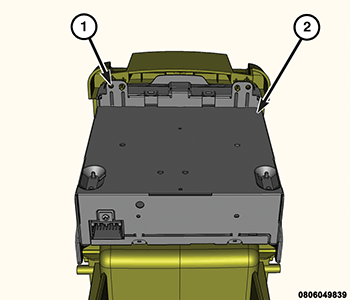

GC0170017Courtesy of CHRYSLER GROUP, LLC
  1. Place the disc player (2) onto the storage bin.
  2. Install and securely tighten the disc player retaining screws (1).

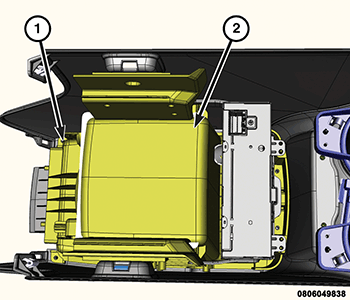

    GC0169968Courtesy of CHRYSLER GROUP, LLC
  3. Position the storage bin (2) onto the floor console and securely tighten the retaining screws (1).
  4. Connect the wire harness connector.
  5. Install the floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
