Media Hub: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

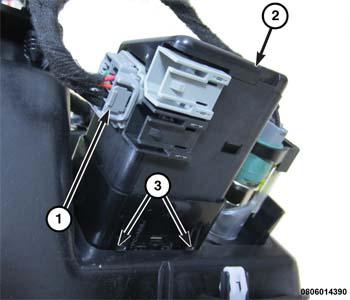

- Insert the media hub (2) into the console bezel.
- Securely engage the plastic retaining tabs (3).
- Connect the wire harness connectors (1).
- Install the console bezel. Refer to BEZEL, SHIFTER, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
