Section 61 (Audio/Video/Entertainment/Connectivity (Service Information)): Camera: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

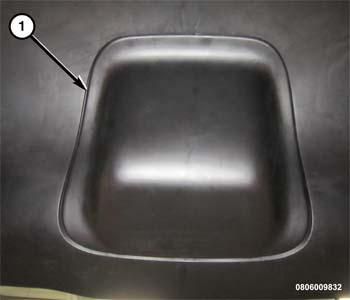

- Remove the rear camera trim cover (1) from the liftgate.

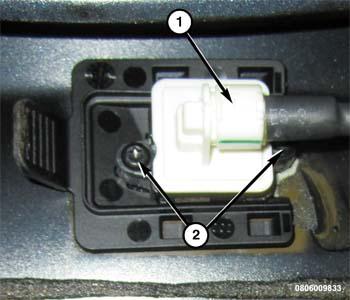

- Disconnect the electrical harness connector (1).
- Remove the camera mounting fasteners (2).
