2.2L Diesel Low Pressure EGR Valve

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to the appropriate service article .
    GC0170041Courtesy of CHRYSLER GROUP, LLC
  3. Loosen the clamps (2, 5) and remove the air cleaner outlet tube.
    GC0162227Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the low pressure EGR valve wire harness connector (1).
  5. Disconnect the EGR temperature sensor wire harness connector (2).
    GC0162224Courtesy of CHRYSLER GROUP, LLC

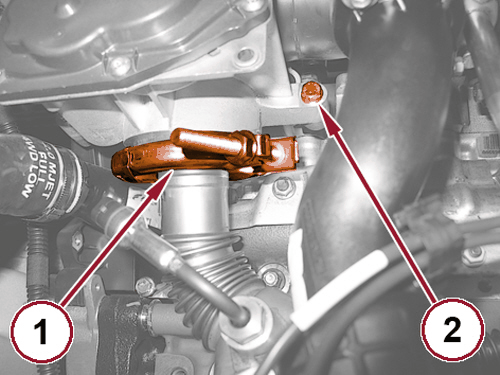

  6. Loosen the bottom clamp on the low pressure EGR air flow control valve (1).
  7. Remove the low pressure EGR valve bolt (2).
    GC0162308Courtesy of CHRYSLER GROUP, LLC

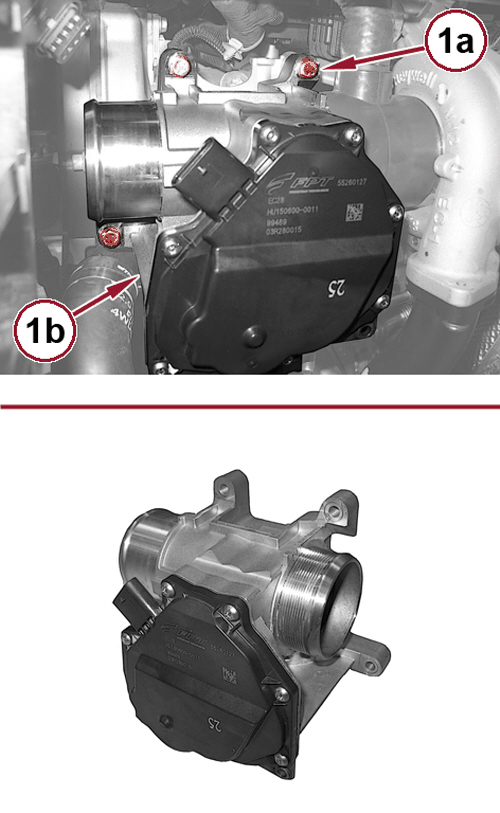

  8. Remove the bolts (1a) and the low pressure EGR valve (1b) disengaging it from the sleeve to the turbocharger.
    GC0170001Courtesy of CHRYSLER GROUP, LLC
  9. If necessary, remove the bolts (1) and the low pressure EGR valve mounting bracket (2).
