2.0L Diesel

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0147869Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the Exhaust Gas Recirculation (EGR) cooler manifold (1) and place it on a workbench (Refer to the appropriate service information article ).

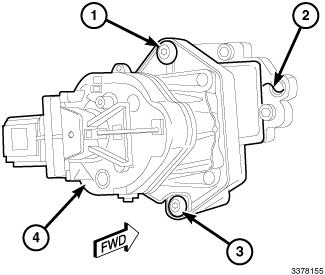

    GC0147870Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1 and 3) and the EGR valve (4) from the EGR cooler manifold (2).
  4. Remove the EGR valve gasket and discard.
