Solenoid, Exhaust Gas RECIRCULATION (EGR), 2.0L Diesel: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

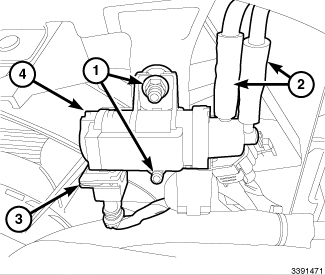

- Position the Exhaust Gas Recirculation (EGR) vacuum valve solenoid (4) and install the two retaining nuts (1). Tighten the nuts securely.
- Connect the two vacuum hoses (2) and the wire harness connector (3) to the EGR vacuum valve solenoid.
- Install the engine cover (1).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
