Removal 2.2L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the bell pan. Refer to BELLY PAN, REMOVAL .

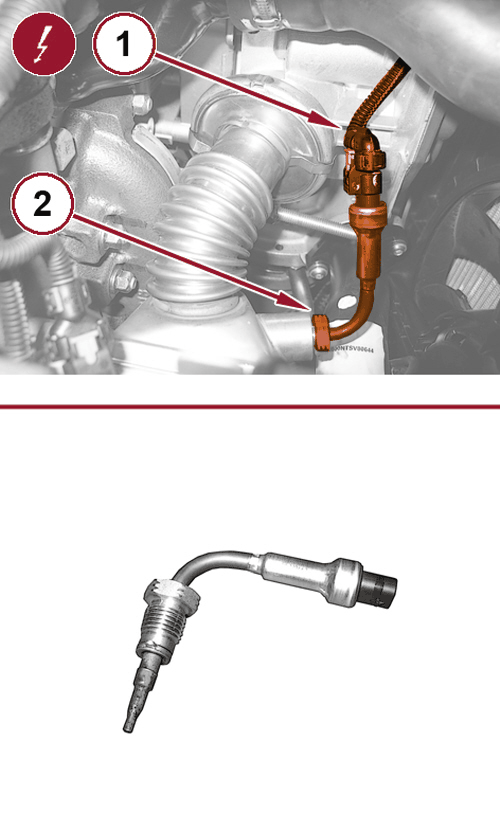

    GC0162325Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the low pressure EGR cooler temperature sensor wire harness connector (1).
  4. Remove the low pressure EGR cooler temperature sensor (2) from the EGR cooler.
