Valve, Purge Control: Removal: 2.4L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159679Courtesy of CHRYSLER GROUP, LLC
  1. Remove the engine cover (1).

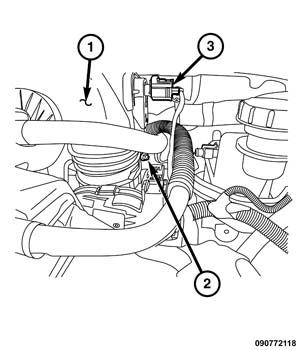

    GC0155615Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the Intake Air Temperature (IAT) sensor wire harness connector (3).
  3. Loosen the resonator to throttle body clamp (2).

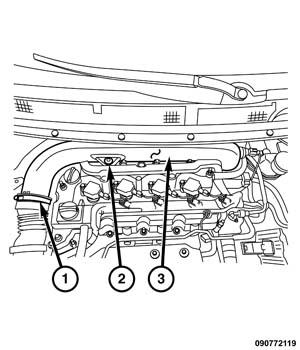

    GC0155681Courtesy of CHRYSLER GROUP, LLC
  4. Remove the resonator bolt (2).
  5. Loosen the resonator inlet clamp (1).
  6. Remove the resonator (3).

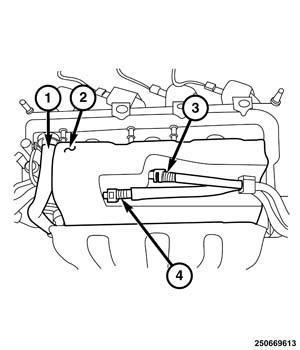

    GC0156300Courtesy of CHRYSLER GROUP, LLC
  7. Remove the quick connect fuel tank hose (4) from the duty cycle purge valve.
  8. Using care, roll the foam isolator (2) away from the duty cycle purge valve.

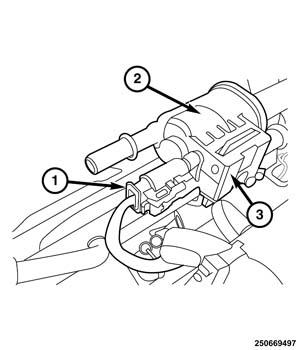

    GC0156094Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the duty cycle purge valve (2) wire harness connector (1).

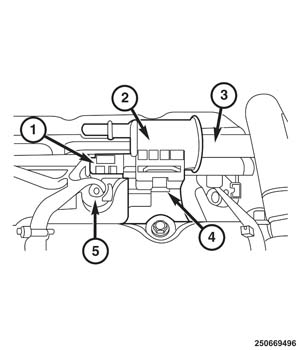

    GC0155662Courtesy of CHRYSLER GROUP, LLC
  10. Remove purge hose (3) from duty cycle purge valve (2).
  11. Remove the duty cycle purge valve from the bracket (4).
